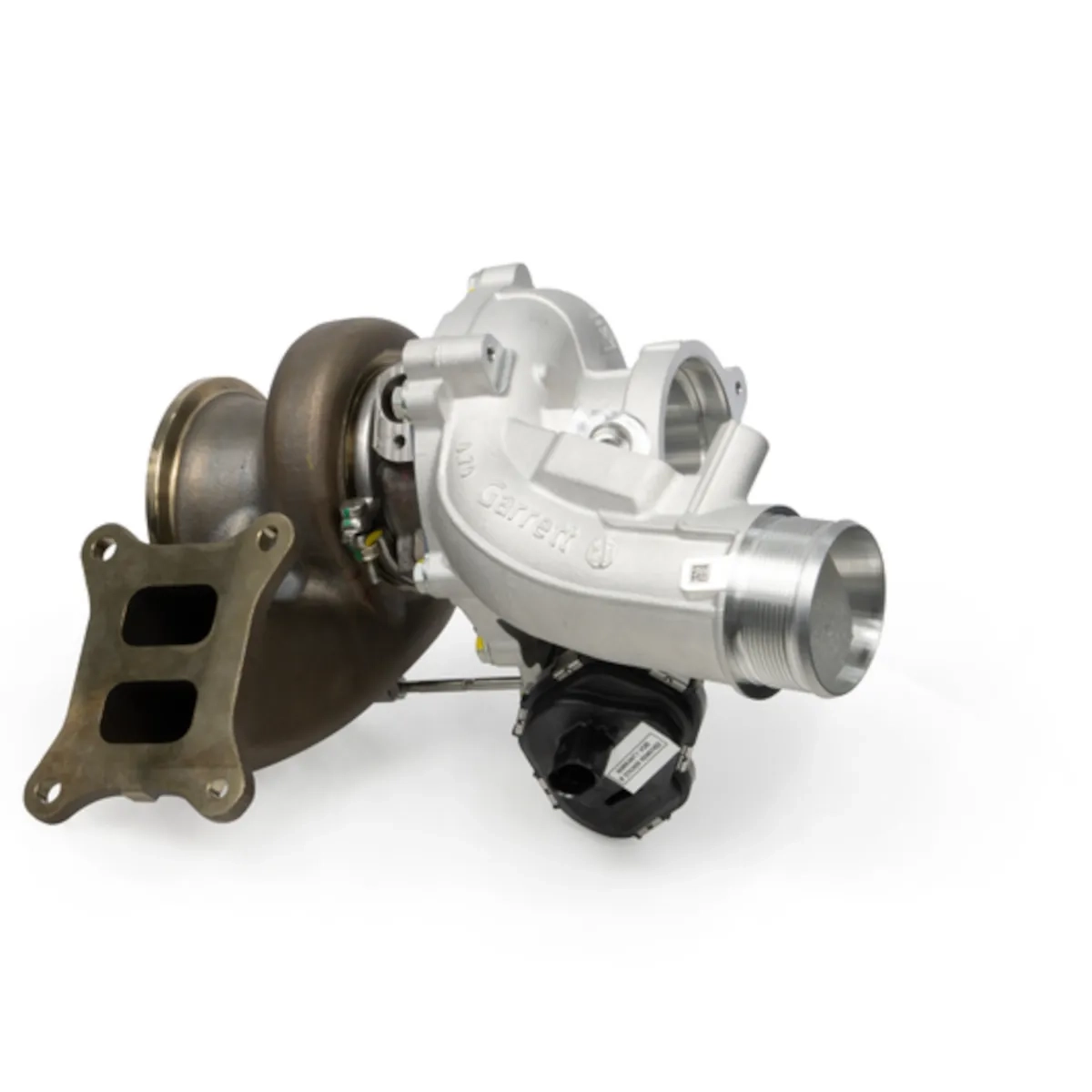

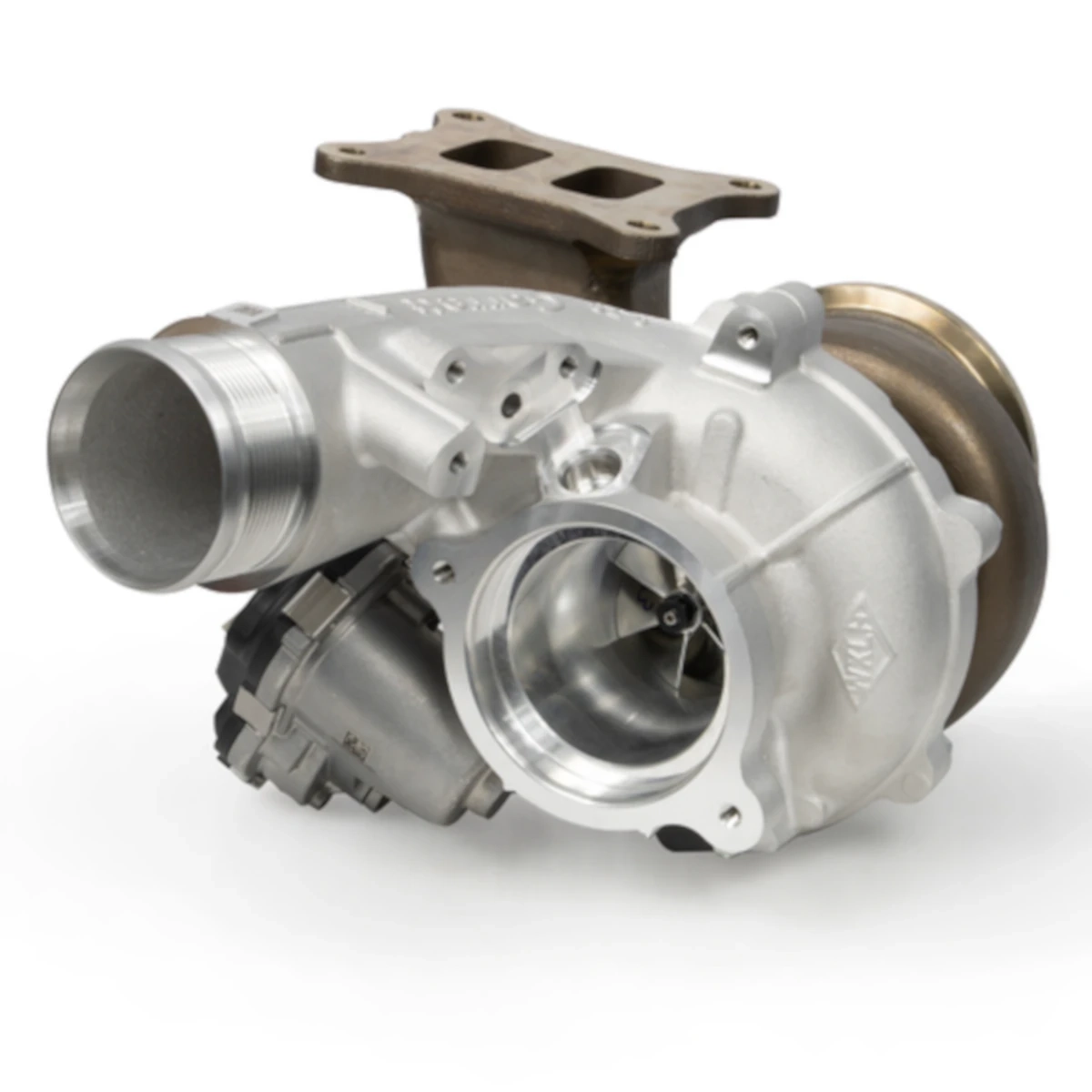

This original turbocharger manufactured by Garrett is plug & play for Audi A3, Golf 8 R or Cupra Formentor.
The ultimate performance upgrade for the 2.0 TSI EA888 EVO4 engine from 2020.
Power specification: up to 550 hp
Model: GT2563
Engine: 2.0 L TSI EA888 EVO4
Vehicles:
- VW Golf 8 GTI Clubsport
- VW Golf 8 R 4Motion
- VW T-ROC R 4Motion
- VW 8 Variant TSI R 4Motion
- VW Tiguan TSI R 4Motion
- Audi A3 Sedan S3 Quattro
- Audi A3 Sportback S3 Quattro
- Audi SQ2
- TTS Quattro
- Roadster TTS Quattro
- Cupra Formentor 2.0 TSI 4Drive
- Cupra Leon Sportstourer 2.0 TSI 4Drive
- Cupra Leon Sportstourer 2.0 TSI
- Cupra Leon 2.0 TSI
- Cupra Ateca 2.0 TSI 4Drive
Comparison number/s:
- 06Q145703C (EU)
- 06Q145703F
- 06Q145703G
- 06Q145703H
Features:
- Direct-fit bolt-on turbocharger kit with all connections
- Electronic servomotor

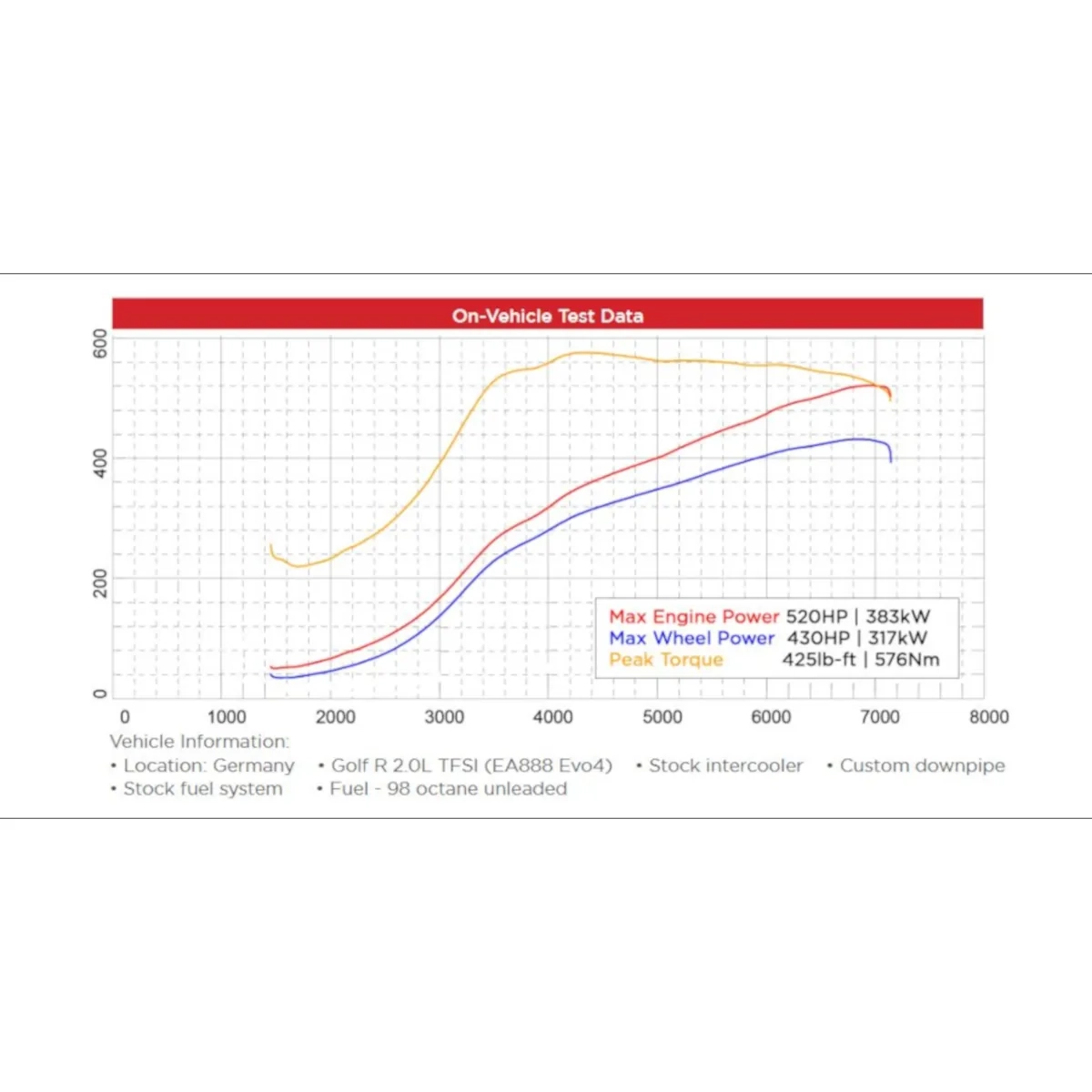

- Power rating 550 hp | 410kW (results on vehicle 520 hp | 383kW, torque of 576 Nm with conservative tuning)
- +20% compressor flow compared to stock turbocharger
- +37% turbine flow compared to standard turbocharger
- Customised modern compressor wheel aerodynamics
- State-of-the-art turbine wheel design Aerodynamics made of MAR-M high-performance material for 1050 °C
- Stainless steel exhaust casing for 1050 °C
- Speed sensor connection port
- reinforced axial bearing
- Compressor side: inlet Ø 51mm / outlet Ø 63mm
- Turbine side: inlet Ø 58mm / outlet Ø 50mm
- max. Turbocharger speed: 177,800 rpm
WARNING:
The maximum permitted operating speed for stage 1 turbocharger is 177,800 rpm. Operating the turbocharger above this speed is at your own risk and can lead to failure of the turbocharger and thus to the cancellation of the warranty. To prevent overspeeding, we recommend using tachometer 781328-0003 (kit with speed sensor and indicator) or 781328-0004 (speed sensor).
